Transformer Peak Loading

There are 2 common ways that you may look for transformer peak loading, looking at load for specific transformers based on any recent loading or looking at the loading on all transformers for specific dates.

1. Loading on specific transformers in the last 13mo

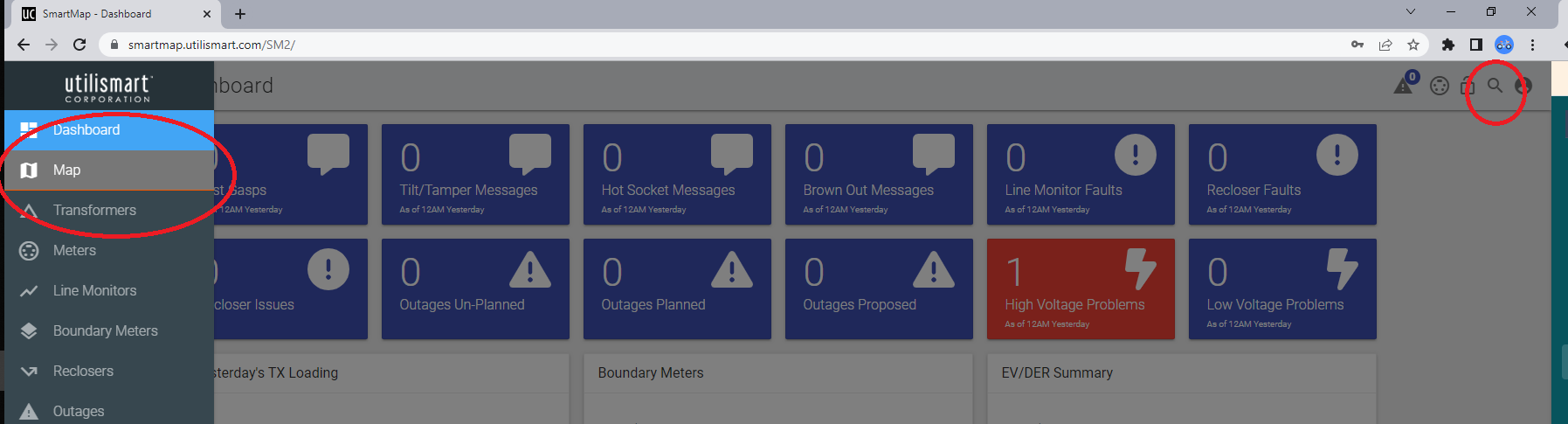

a. Navigate the the transformer of interest using the map or the search

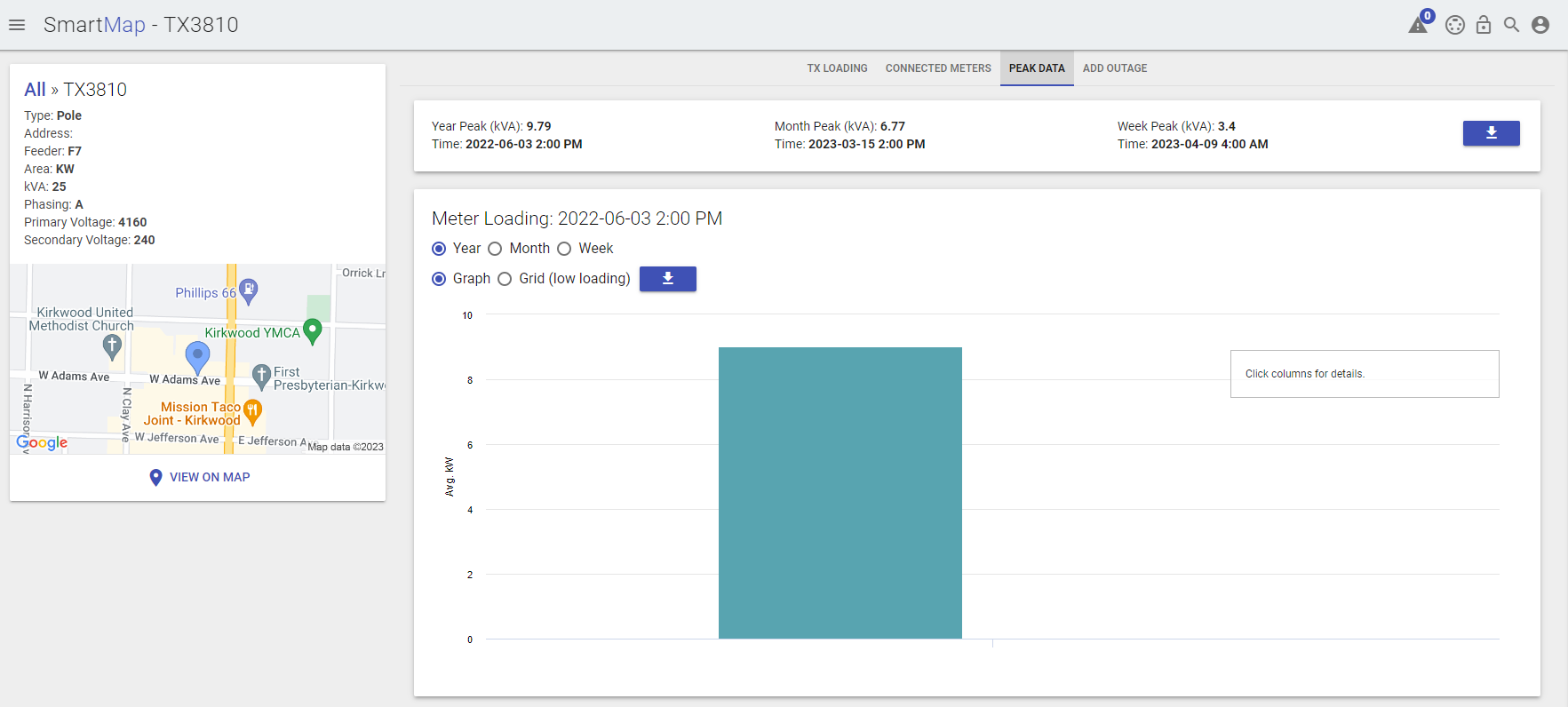

b. select 'Peak Data' to see the peak in the last year, month and week:

2. Loading on all transformers for specific dates

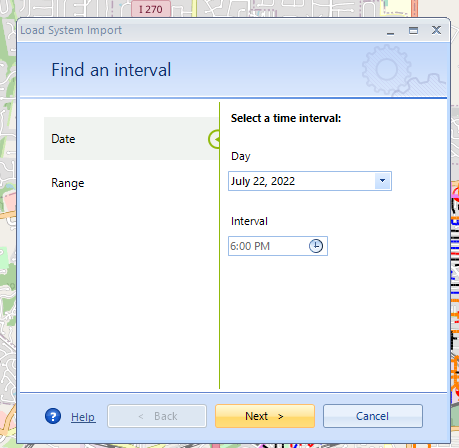

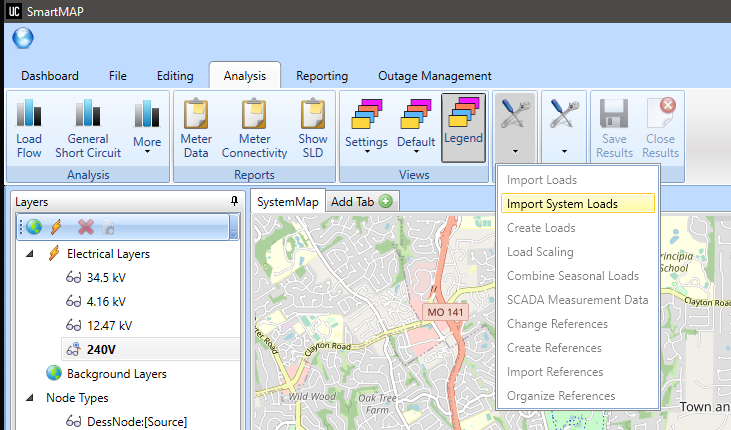

a. Open the current system model in the desktop application and import system loads for the date & time you want to view loading for:

b. run Load Flow analysis with the default values

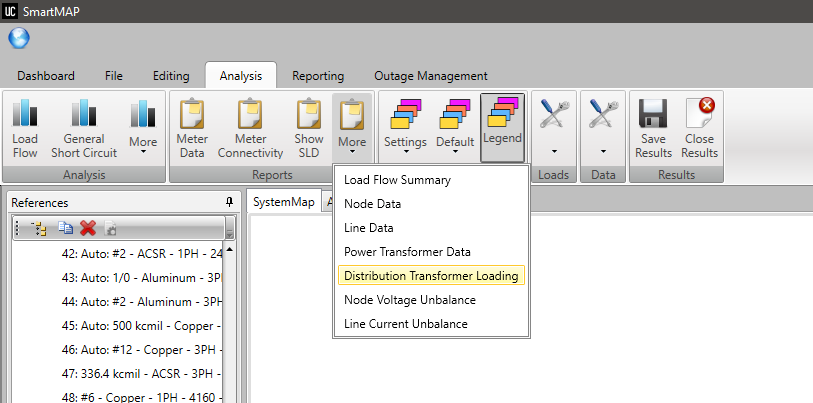

c. Open the Distribution Transformer Loading report:

You can view/sort or export to .csv for further work with the data.
