Transformer Loading

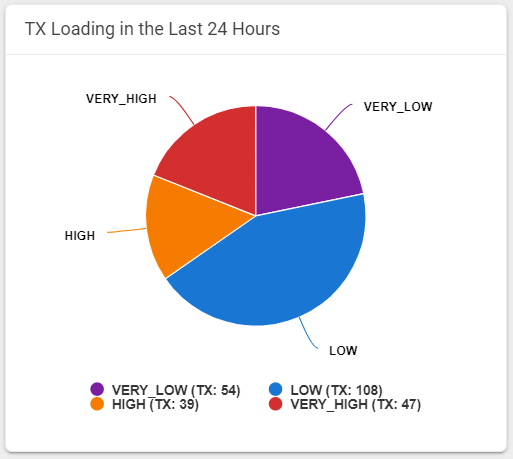

TX Loading chart: The Pie chart divides transformer loading into 4 types:

1. Very Low
2. Low
3. High
4. Very High

This helps identifying transformer maintenance needs and loading data.

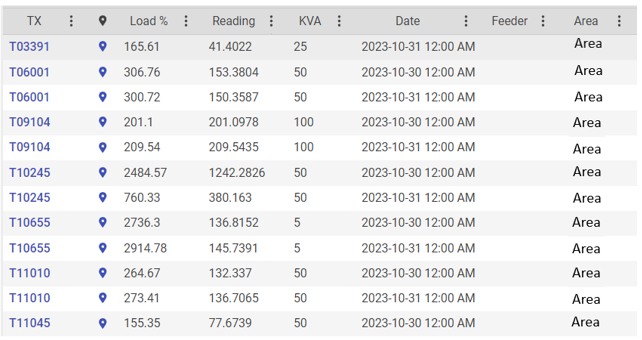

Clicking on any quadrant loads the details: You will be redirected to the list of transformers depending on type of loading selected. This list includes transformer name, load percentage, readings, size, timestamp, feeder name and area.

(Tip: Transformers thresholds are configured under the Admin menu.)

Drop down menu: The drop down menu is used to switch between all 4 loading data types.

Date selector: To view any readings from previous months (max 1 month can be viewed).

Load: Use it to reload fresh data.

Download: Download button to download the whole list as .csv file.
