Release Notes

Modified on Mon, 29 Sep at 7:41 AM

September 11


WME - "Import Data" feature

  • Added the missing "Import Data" feature into WME to allow users to bring portions of an existing .DSX into a new model, such as styles, references, sources, Power TXs, etc.


September 04


WME - Ability to "Remove/Delete" Server Models

  • Implemented the ability to delete models saved as "Cloud Model" to avoid the accumulation of unwanted models or excess of "Autosave" models.


September 03

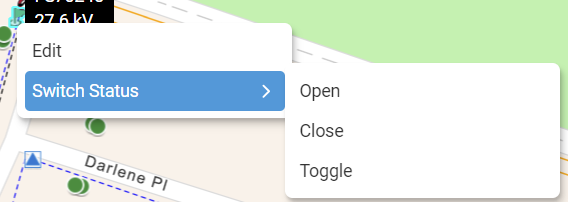

WME - Set Switches to normal position

  • Added the missing "Set Switches to Normal" feature, where the user can easily set all switches to their normal operating position.


UCAuth - Publish System Model Auth Fixes

  • Implemented some fixes regarding to System Model publish to handle new UC Auth related changes.


HealthMAP - Outage Alert spamming messages

  • Fixed an issue that was causing o receive thousands of email alerts related to outages. This was handled by simplifying their feeder names


August 28


WME - Missing System Model History Files

  • Added that System Model history files into WME, as well as renamed some of the "Open Model" options to better suit its functionality.


August 27


WME - Feeder Naming Issue

  • Fixed an issue related to "Set Feeder Name" in WME to mirror the functionality from Desktop App.


WME - Saved as Server Model not updating file name

  • Solved a problem related "Save as -> Cloud Model" not changing the model name according to the new file name when it was saved as Cloud model.


August 25


UCAuth - Handling System Users


August 20


Notification Service - Transformer Load File Error

  • Fixed an issue that could cause some confusion related to Transformer Load, where it was being processed twice during a certain period of the day.


WME - 'System Model Errors' not sorting

  • Fixed a bug that was preventing the "Sorting" functionality to properly work for "Check Model" feature.


WME - "Create References" feature missing

  • Implemented the "Create References" functionality from Desktop App into WME to proper create references for Conductors, Transformers, etc.


WME - "Save Local" instead of "Export Model"

  • Implemented some adjustments related to Save/Export function names and their location.



August 18


WME - "Create References" feature

  • Added the "Create References" feature from Desktop App into WME.


August 14


WME - Allow opening 2 different instances

  • Implemented the possibility of having more than one session open, which enables comparison between Current System Model and the most recent Model during its cleaning process.


August 13


WME - Performance Issue when Saving System Model

  • Adjusted a performance issue that was causing extra delay and, sometimes, crashing the process when trying to save the System Model.


WME - Query Assets missing "Line" option

  • Fixed an issue that was not the correct option for "Line" elements when using the "Query Assets" feature.



August 06


WME - Line error being tagged as a "Node" error

  • Solved a problem that was tagging the wrong asset when searching for an specific error in WME. When highlighting the asset of the "Line end nodes must both be on the same layer", it was only highlighting the node when the issue was on the Line.



July 31

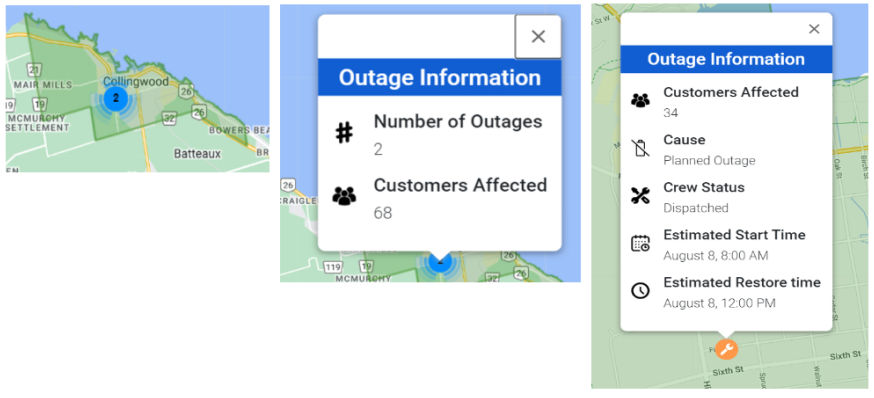

Public Outage Map - Load Testing

  • Stress testing the Public Outage Map in terms of concurrent users and the load it takes on the servers.


SmartMAP - OMS issue when editing an existing outage

  • Fixed an issue that whenever the customer would try to edit an outage, the number of "meters impacted" would change to the total number tied to the "Interrupting Devices". Example: the outage encompassed 18 meters out of the 36 meters under TX72009, when the customer tried to edit the Outage information to add "Estimated Restore Time" or any other field, the number of "Meters Impacted" would change to 36.


WME - Web App crashes after trying to edit Switch Element

  • Fixed a problem that would cause the Web app to crash when trying to edit a "Switch" element in WME.


July 30


WME - Autosave feature adjustment

  • Increased the "Autosave" timer from 15 minutes of idleness to 30 minutes.


WME - 'System Model Errors' not sorting

  • Addressed an issue that was causing the "Sorting" function to not work as intended for several features in WME, such as "Check System Model", "Meter Connectivity Issues", "Query Properties".


WME - Query Assets layout/formatting issue

  • Addressed an issue where one of the node categories option were wrongly formatted, which caused issues to correctly choose the option in "Query Assets


WME - Better identification when the assets are stacked on one another super imposed

  • Added a feature that would turn the asset name bolder if there are more than one asset on top of each other to facilitate identification and correction.


WME - Trace Secondary feature missing

  • Added the missing feature "Trace Secondary" to WME.


July 28


UCAuth - Handle users with multiple accounts

  • Implemented the possibility of handling users with multiple Orgs access without forcing them to create multiple unique accounts (each account with a unique email).


July 24


Line Monitor Search Error

  • Fixed an issue that was resulting in an error when the user would search for "Line Monitors" in SmartMAP.


July 23


WME - Query Assets Improvements

  • Added the "remember" previous Queries in "Query Assets" so that the user does not need to re-enter all detail over and over again.


Last Gasps - Add "PowerOff" To Outage Event Types Check

  • Implemented a way to handle how SCE sends Outage Type as "PowerOff".





July 16


Login Page Showing 'Requested Failed' instead of 'Invalid Username or Password' for Invalid Credentials

  • Small fix to add the proper "error messages" when trying to log in with wrong credentials, or when the account had been locked, etc.


Dynamically Load Reading Interval

  • Improved the new condition implemented to clear out Outages. Now, instead of using a prefixed additional hour interval with confirmed load or voltage read, it will dynamically load the interval duration so that outages pertaining to 15-minute meters can be quickly addressed.


Disable User Error

  • Fixed an error that was preventing Admins to disable users, the reason was that, for those specific "problematic" users, they did not have an entry for a specific configuration field which led the update to fail.

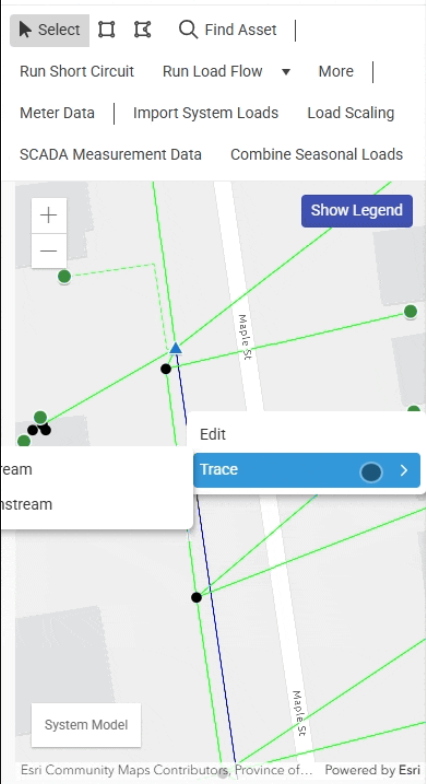

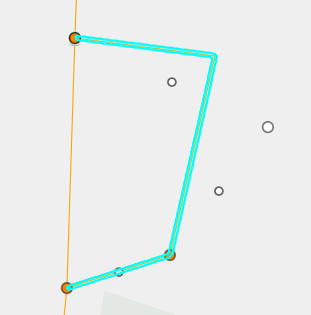

WME - Move Line live preview feature

  • Added the "preview" functionality when moving a node or an asset in the WME.


WME - Asset Selection zoom out and in feature adjustment

  • Enhanced the transition speed of zooming out from a previously selected asset and in to the new selected asset. This has improved the QoL of the user when performing model clean up tasks.


July 9


WME - 'Connectivity Issues' not clearing from the list after fix

  • Fixed a problem that was not clearing the fixed issues from the "Connectivity Issues" list, which was causing confusion during the model clean up task.


Add TLS to SmartMap QA and DEV

  • Necessary requirement to use UCAuth (SSO + 2FA) where it requires clients to have "https" and set up TLS.


July 2


Updated Condition for Clearing an Outage

  • Adjusted/Enhanced one of the conditions to clear an outage. Now it will take into consideration an additional hour with confirmed received data of load or voltage read to clear the outage (previously it was considering just one single Load/Voltage read).


WME - 'Show Loops' possible lingering issue

  • Fixed an issue that was not showing a specific loop when two sources were connected to each other. Now the "Error table" will display the error with a message "Source is connected to another source".

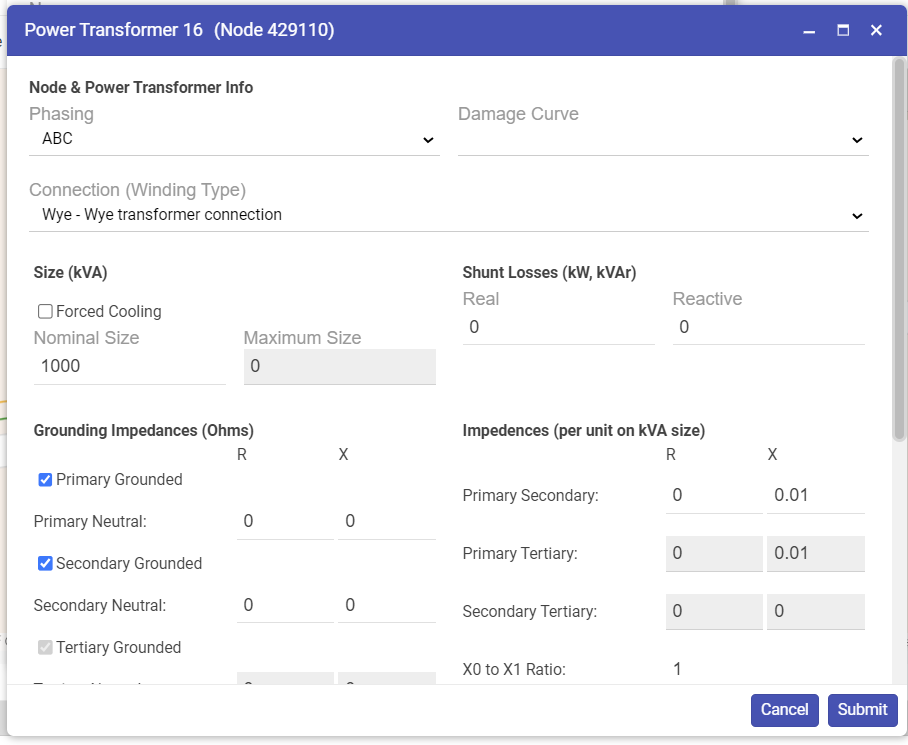

WME - Power Transformer edit issue

  • Fixed an issue that was displaying the line connection between a Power Transformer and a primary line and allowing that line to be edited. The problem has been solved and the connection is now invisible and not editable.


WME - Consolidate Model Publish Error Messages

  • Consolidated the Model Publish Error messages into one single table for a standardized approach while adjusting the style of the message


June 25


WME - 'Show Disconnect' sort issue

  • Solved the "Sort" functionality that was not properly working for some features like "Show Disconnect" and "Show Inactive Meters".


WME - Pop-up balloon-tip info usability change

  • Small adjustment to the position of the tooltip pop-up window to avoid being to close to the mouse cursor where, in some angles, would sometimes cover it and would prevent the user from knowing which asset was selected.


WME - No-load TX losses issue + Reference tab Usability in WME

  • Implemented a feature that was missing from WME, where the 'No-load TX losses are very high' was not able to be clicked and open the editable reference window.


WME - Move Node possible issue

  • Fixed an issue that was causing an error when moving a node "too fast" with the "Move node" tool in WME.


Admin -> User Alerts crashing Web App

  • Solved an issue that was crashing the Web App when trying to access the "User Alerts" section from the "Admin" menu.


June 19


WME - Asset detail Usability feature

  • Implemented the 'double-click' functionality to access the 'Edit' window of the Element from within the asset detail window.


WME - Copy/Paste feature not 100%

  • Fixed the issue that was causing the 'Copy/Paste' feature to not work as intended for some assets (Switches and Transformers).


WME - Query menu relocation

  • Moved the 'Query' feature menu to the 'Editing' tab for ease of access to our users.


WME - Autosave + Close session new feature

  • Implemented the 'Autosave' and 'Close Idle Session' functionalities to the WME for when the user remain idle for 15 minutes or more minutes.


June 18


WME - 'Unique ID is used more than once....' issue

  • Fixed an issue regarding duplicate Unique IDs, where the system was not alerting when the same Unique ID was being used more than once throughout the model.


WME - Add line issue

  • Fixed an issue that was happening when adding a line from an isolated node to a primary line (Node -> Node in Primary Line) and when adding a line from a primary line to an isolated node (Node in Primary Line -> Node), in both cases the 'Phasing' was not being auto-filled and the 'Line Length' was not being calculated.


June 17

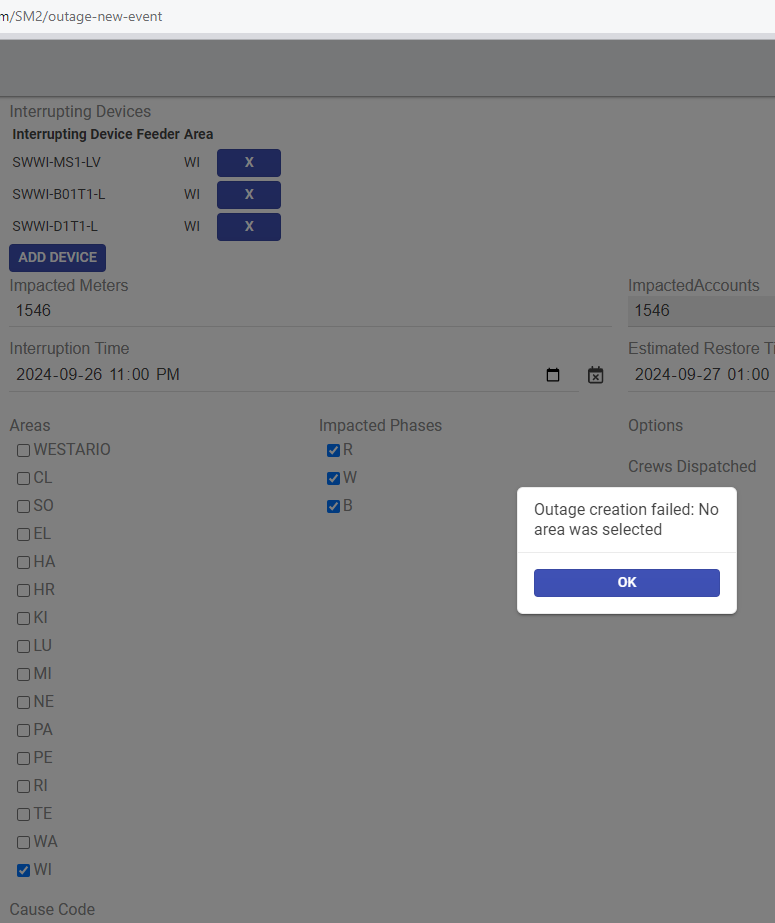

SmartMAP - Add Outage Call 'Submit Failed' issue

  • Fixed an issue that was causing misinterpretation when submitting an 'Outage Call'. The 'Submission Failed' message would be showing, even though the submission was successful. Additionally, solved the problem of email alerts not being sent to assigned people.


June 11


WME - Query Properties

  • Implemented the 'Query Properties' feature into WME and updated how the table visualization can be edited.


SMAP - Outage Reliability Report

  • Implemented an option for the 'Outage Reliability Report' to switch between hours and minutes to better accommodate client's need.


WME - 'Show Loops' possible issue

  • Fixed an issue where WME was not considering Loops in the system when there were some still needing adjustments.


WME - Saving a model renames the file to 'Model.DSX'

  • Fixed an issue where WME file's name would be defaulting to 'Model.DSX' instead of the custom name given during the save model action.


June 10


Disappearing Feeder Name

  • Fixed an issue that was erasing the 'Description' field from the asset's 'Details' page if that description was added via SmartMAP and not through GIS upload.


June 5


WME - Secondary line theme issue

  • Fixed an issue where the secondary lines were showing as 'black' color instead of green.


June 4


WME - Mobile responsiveness for opening model from server

  • Fixed an issue where opening a model in WME mobile was not responsive as intended and while adjusting the 'From Server' list to be visible on mobile.


May 28


Add ability to edit EV Config

  • Fixed an issue that was preventing EVDER Config to be fully edited.


WME - Line not breaking

  • Fixed an issue where adding a node through the 'Add Node' feature in WME would not break the line and instead would insert the node on-top of it. The line would only break if you right clicked it and selected the 'Add Node' option.


WME - Bulk Property Update

  • Added the Bulk Property functionality from the Query Property feature


WME - Inconsistent zooming behavior

  • Fixed a smaller issue with zooming behavior when selecting different nodes from the 'Disconnected' or 'Check Model' list.


WME - Source Creation defaulting to wrong Voltage

  • Fixed an issue that was defaulting Source creation for the EPL model to 1000V layer instead of the one selected during creation.


WME - Query Assets issues

  • Fixed an issue that was providing the opposite desired result when querying using the 'Query Assets' feature for 'Nominal Voltage'. When selecting to display only the lines <1000V it was showing the lines which were >1000V.


WME - Query Assets missing feature(s)

  • Added missing components to the 'Query Assets' feature in WME that were present in the Desktop version.


WME - Selection Tool Issue

  • Fixed a problem that was happening with the 'Selection' tool, where when selecting an area that included Lines, Meters, TXs, it would only select the Lines and would ignore the other assets.


May 21


WME - 'Check Model' Usability issue

  • Implemented a usability function that highlights the issue from the 'Check Model' list being dealt with at the moment and proceeds to highlight the next problem from the list when the first one was solved.


WME - Not able to open 'Details' page for any asset on Mobile and not being able to open the other menu 'Edit/Trace' from the asset

  • Fixed an issue where opening 'Details' page and 'Edit/Trace' function from the asset were not working while using WME on mobile.


WME - Asset name visualization issue

  • Adjusted an issue where the asset names were cluttering when they were close to each other, and it was decided that junctions would not have their names shown.


WME - Voltage Layer resetting to default

  • Fixed a small issue where during model clean up while regularly changing between 'Editing' and 'Tracing' would cause the 'Voltage Layer' to go back to its default layer instead of remaining on the one that was being selected/worked on.


WME - 'Move Node' icon adjustment

  • Minor adjustment made to the mouse cursor once the 'Move Node' feature is selected.


WME - Selecting 'Add Line' defaults to 'Selector tool'

  • Minor fix deployed to address the issue that was defaulting the selection of 'Add line' to 'Selector Tool' when you clicked at it for the first time.


WME - Drawn Lines not connecting

  • Fixed an issue that would only consider the secondary lines as drawn after you ran 'Check Model'. If you did not run 'Check Model' after drawing the lines they would be considered disconnected.


May 14


WME - Show Disconnected feature minor issue

  • Fixed an issue that was refreshing the selection to the top after choosing one disconnected node from the list.


WME - Undo (Ctrl+Z) shortcut does not working

  • Fixed an issue where the shortcut for the 'undo' action (Ctrl+Z) was not working.


WME - Delete confirmation issue

  • Fixed an issue where pressing Enter after the 'Delete Confirmation' pop-up would not confirm the action and you would have to click with the mouse.


WME - Alert pop-up when cancelling session

  • Added a 'Cancel Session' confirmation window when canceling a session in WME.


May 13


Outage details with location auto fill Issues

  • Fixed an issue where the location details was not auto filling as intended.


May 7


WME - Connectivity issue messages not working as intended

  • Fixed an issue where after dealing with a problem from 'Show Connectivity Issues' feature it would swap to 'System Model Errors' list.


WME - Switch status not updating correctly

  • Fixed an issue where after updating one or more switches and saving the system model, all switches would change their status to 'Open' causing problems to the model.


WME - Transformer Reference Select

  • Adjusted the nomenclature of the Transformer references in WME.


April 30


Opening model file (DSX) in WME Production.

  • Fixed an issue where a DSX file bigger than 300 MB would not open in WME.


WME - Unnecessary message

  • Fixed an issue where a message would always pop-up when opening a model in WME even if no one was editing.


WME - Adding a meter element while creating a node issue

  • A fix was deployed to address an issue that was happening whenever a node was created and an 'Element' was added to it (Meter Element, Distribution TX, etc) that would erase the info added under 'Name', 'Description' and 'UniqueID'.


April 24


WME - Loads -> Import References

  • Import References feature was implemented into WME to add Reference Items to the model from either SmartMAP Library or the existing .DSX file.


WME - Add Object Match Editor

  • Added the 'Custom Select' feature from the Desktop App to WME which is now called 'Query Assets'. Additionally, the ability to sort the 'Errors table' has also been implemented.


April 23


WME - 'Show Meter Connectivity Issues' feature missing

  • 'Show Meter Connectivity Issues' feature was implemented into WME.

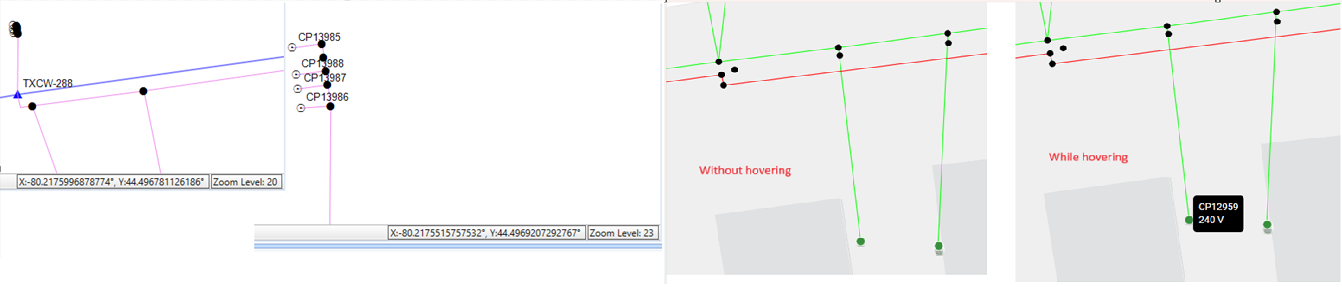

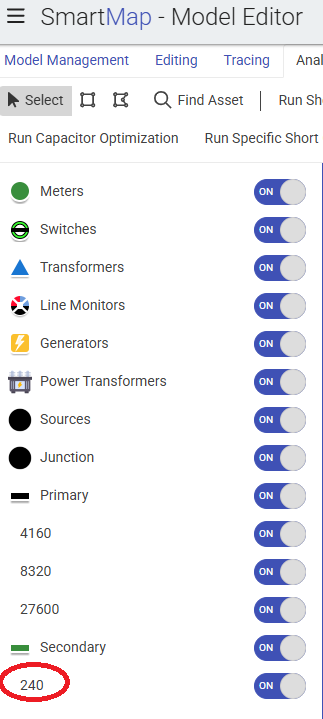

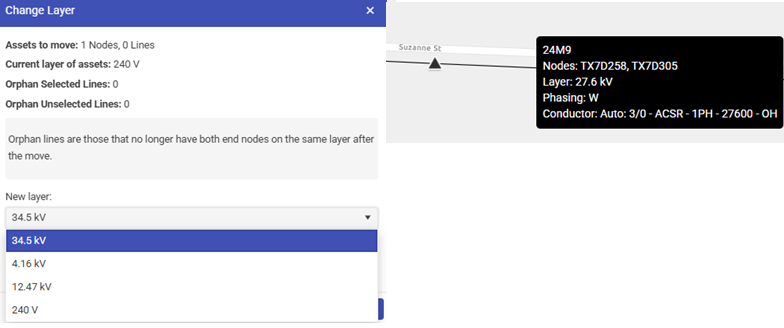

WME - Electrical Layers Feature

  • 'Change Layer' feature was added to WME along with the 'Hovering' feature that shows part of the asset information.

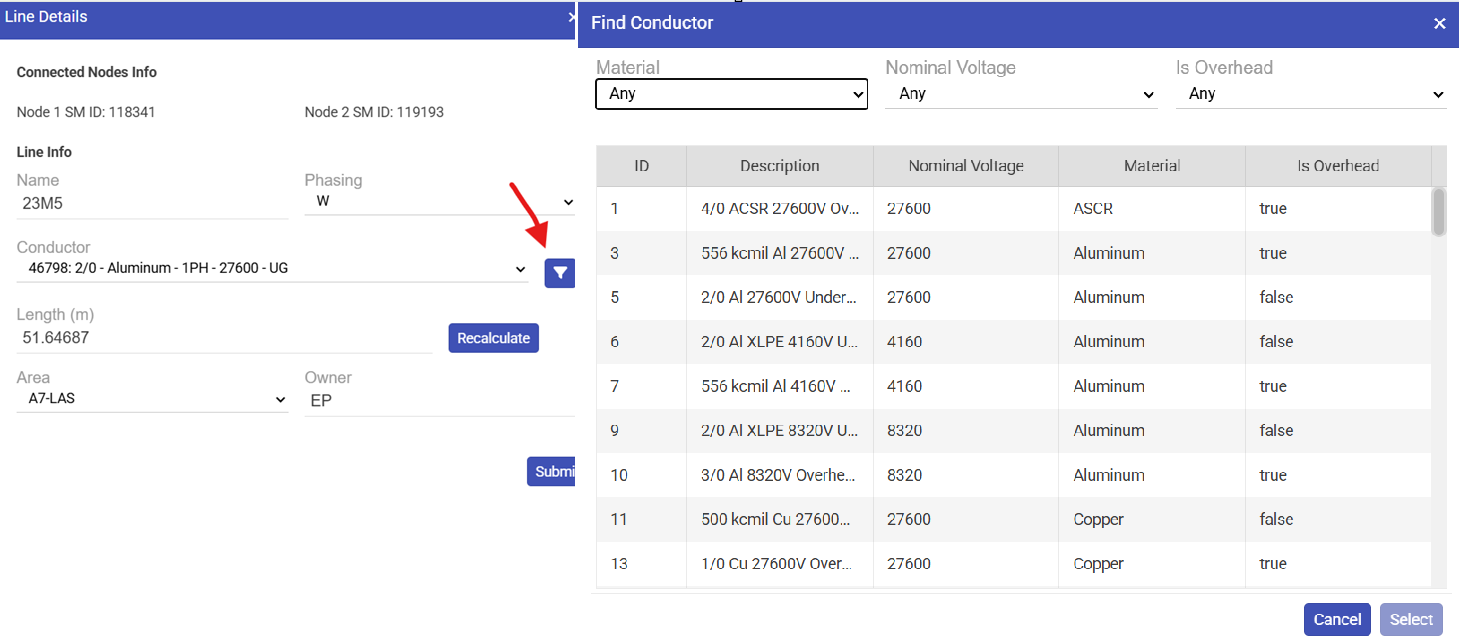

WME - Selector tool for line references

  • Selector tool was implemented for the 'Line Details' window under 'Conductor' field.


WME - Load EV, Storage, Solar, Wind meter attributes

  • Meter attributes such as EV, Solar, Wind and Storage was added into WME.

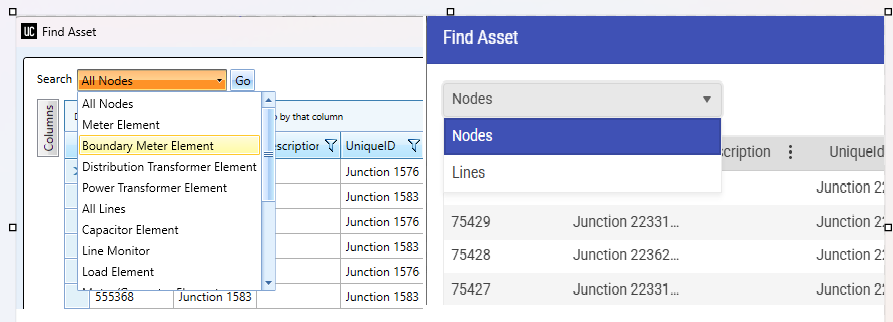

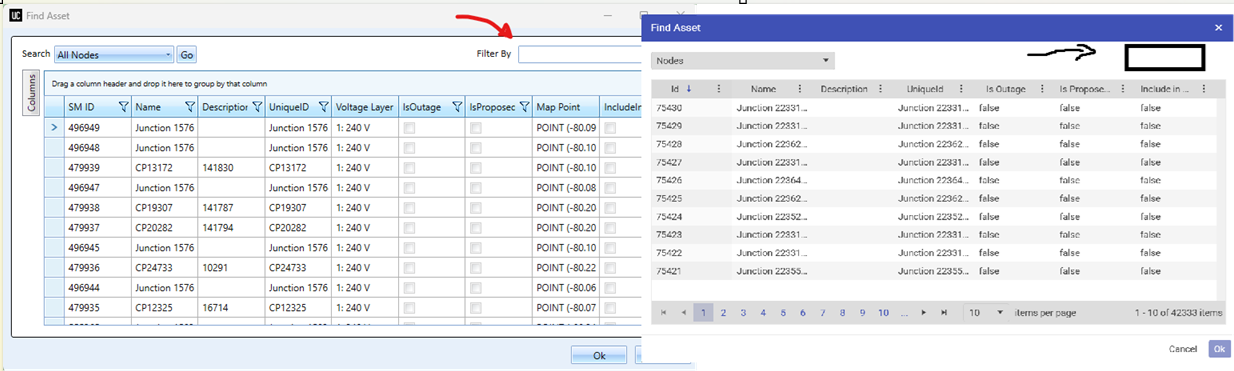

WME - Find Asset issue

  • Fixed an issue when using the 'Find Asset' tool, where the search field was wrongly set up to be case sensitive.


WME - Create generic flyout menu for node/lines

  • Flyout menu for overview, node and line details was added to WME to improve User Interface and experience while navigating in Web Model Editor.


April 16


WME - Short Circuit Failing

  • An issue was noticed in WME while performing 'Short Circuit' analysis which was related to loads elements with invalid seasons. The bad loads were removed and the feature was able to work as intended. This will remain being monitored during the following days.


WME - Use larger icons

  • Small improvement was implemented to facilitate map icons visualization in WME.


Rotating Screen Issues in other functions - Mobile

  • It was noticed that some functionalities and reports were not properly displaying their information (units, other details) and/or were not readjusting accordingly if the screen was rotated while on a mobile device. A fix was deployed to solve this issue and properly display the reports.


April 10

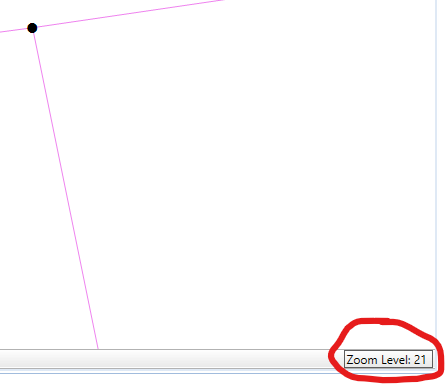

WME - Information Display Based on Zoom

  • It was noticed that some information (such as asset names) was not being displayed accordingly to the zoom level similar to what happens in the Desktop Application. Additionally, the hovering feature, also present in the Desktop, has been implemented into WME, which now shows more information when you hover over the asset (meter, switch, transformer, line, etc.).


WME - Units configuration

  • All pertinent units of measure have been added to WME and are now similar to what we have in the Desktop Application features.


April 03


WME - Cancelling a Session Doesn't Clear Model Changes

  • A bug was fixed that would cause system changes to not be discarded if the session was 'Cancelled' without being saved, those edits would stay even after refreshing the page.


March 26


WME - Find Asset Additions (Search Tool)

  • The 'Find Asset' tool had some missing asset options in WME when compared with the Desktop version. Additionally, the 'Filter By' field was not present in the WME either, so a fix was performed to adjust the functionality.


WME - Capacitor Optimization Features

  • While comparing the feature in both instances (WME and Desktop), it was noticed some minor discrepancies, such as Unit of Measures not properly showing in WME and the 'Default' value of 'Maximum number of banks to place' was set to '1' in WME while that number was '5' in the Desktop version. A fix was deployed to address those differences.


WME - Tracing Feature Visualization

  • It was noticed that the 'Tracing' feature of a selected element/asset would not be totally visible on a mobile device, so a fix was delivered as a solution to this situation.


March 22


WME - 'More' analysis tool is not showing entirely on Mobile

  • While using the model editor on mobile, it was noticed that the option 'More' under 'Analysis' would be partially covered, which could lead the user into wrongly select a feature or something else. A fix was deployed to take care of this situation.


March 20


WME - Zoom Level Display

  • It was noticed that there was no visual 'Zoom Level' indicator in WME as there was in the Desktop application. This feature was implemented not only to fix the issue, but also to enhance system parity and facilitate users when referring to an specific visual issue that might happen at a certain zoom level.


March 19


Public Outage Map Performance Improvements

  • Implemented caching to reduce delays when displaying large outages.


WME - Run Optimization Feature

  • During feature parity analysis it was noticed that there were some small discrepancies within 'Run Optimization' feature, such as 'Maximum Line/Transformer Overload' and the 'Sort' Function on the 'Switch Selection' table. A fix was deployed to adjust those discrepancies.


March 12


WME - Short Circuit Analysis

  • On checking the 'Run Short Circuit' information, it was noticed that the 'Max Voltage Factor' was slightly above the default value (1,0). A fix was deployed to resolve the issue.


WME - Feature Visualization on Mobile

  • On checking the the usual features of WME on a mobile device, it was noticed that the pop-up windows were not resizing to correctly adjust to the screen format. A fix was deployed to make the features properly visible while using a mobile device.


March 06


WME - "Titles" superimposing value fields in Mobile

  • On checking the analysis features on mobile device, it was noticed that some titles were superimposing the value fields.




WME - Arc Flash Feature

  • On checking the feature parity between Desktop and WME, it was noticed that some units of measure and foot note were missing from the WME Arc Flash.


WME - Loads -> Load Scaling

  • On checking the Load Scaling feature, which is crucial to simulate future loading conditions for engineering analysis, in WME, it was noticed that it was not working as intended, so a fix was deployed to solve the issue.


WME - Asset info in Mobile

  • It was noticed that after running 'Load Flow' on mobile, there was no option to 'View Load Flow'. The double-click option only displayed the asset details, that was corrected and the double-click option now would show the options of displaying asset details, the 'Trace' option and 'View Load Flow'.


WME - Load Flow Result Details

  • On checking the 'View Load Flow' information on Model Editor, it was noticed that it was not showing the correct information (Line-Neutral Voltage and Line-Line Voltage) as the Desktop App. A fix was deployed to solve the issue.



March 05


Line Monitor timeline graph issue

  • Fixed: The 'Line Monitor' option, in the 'POWER (KW)' Tab, when we selected one of the elements to get a detailed view, the timeline graph under the main graph was not showing the proper phase lines.


February 28


Meter Loading Report

  • We have merged the Meter Loading & Voltage tabs into one. The table at the top is the same, and when a meter is selected, the section below has two tabs: Meter Loading & Voltage.


Rotating Screen - Dashboard on Mobile

  •  Fixed: While using HMAP/SMAP on mobile, on dashboard if the screen was rotated and brought back to normal position, the TX Loading, Latest SCADA Readings and EV/DER would not return to fit the original screen size.


February 26


WME - Layers/Assets display based on Zoom Level

  • In WME an extra layer of zoom-control is added for 3-phase which allows SmartMAP to filter out 1ph lines when the user zooms out, but still display the 3ph lines.


February 22

Desktop App - Areas

  • Fixed: There was an issue fetching SMAP.AREAS when opening the desktop app. When we tried to save the model it could not validate areas.


February 19


HMAP/SMAP Voltage Issue

  • Fixed: When a meter loading page was opened, in few cases the voltage readings were showing a blank graph.




February 13


WME - Line Editor Stays on Layer

  • Fixed: After adding a few new lines and executing undo button until button went grey indicating it was completed, but the line was still there.


February 12


Zoom Display change

  • Fixed: The ability to stop displaying single phase lines as the users zoom out, but keep three phase lines visible much longer, it was found something had changed the zoom value and the single phase lines were disappearing too soon.


WME - Source Icon

  • Source elements will be displayed as red and white icon below which is also used in the desktop application.


February 05


Web Map Default Date

  • Since we don't get data for today until next day, no data was available. The map should default to yesterday's date.


January 29


SCADA Time zone

  • Fixed: There was UTC/EST time zone conversion issue when viewing Realtime data.


January 24


Historical Outages List

  • Fixed: When an outage was confirmed, it was  to Historic but not to Unplanned Outages. It should stay in Unplanned outages until a restoration Time was populated for the outage.


January 22


Secondary Voltage Display

  • The breakdown (240V) will be removed to simplify the menu and remove confusion about secondary voltages other than 240V which exist on that layer.




January 17


HealthMap Line Monitors

  • Fixed: Errors were showing when going to the main map for HealthMap customers. This was due to HealthMap customers not having Line Monitors.


January 15


Line Monitors Page Redesign

  • The Line Monitors page will be updated to display SCADA and Virtual points in SMAP.


Realtime Data on Web Map

  • Updated web map to display real-time data.



January 03


WME - Edit Source

  • Source can be edited now in WME.



January 01


WME - Load Loss Analysis

  • This functionality is now available to calculate the load loss results from Load Flow Analysis for any selected node.


December 12


Meters not found in Realtime

  •  Fixed: When selecting meters on the regular web map, it gave an error when in Realtime mode. When Realtime mode was off the selection worked fine.

December 04


Open in New Tab Error

  • When working with SmartMAP, If we 'Open in New Tab' to load many items from a table of data (like overloaded TX). It gave us 'unexpected error' page, but when we refresh the page, it loaded correctly


December 02


Restore Step Search

  • Fixed: When entering restore steps there was 'undefined' issue for devices in .


November 27


WME - Edit Line Preview

  • Fixed: when using Edit Line or when moving a node with lines attached, the line did not show its new location until after making a change.



November 21


Web App - Remove Reclosers and Boundary Meters

  • All Recloser and Boundary Meter related functionality in the web application have been removed after all customers have migrated to use the new SCADA functionality.


POM - Multiple Outage Display

  • Epcor had two planned outages and when clicking the (2) circle and to zoom in to get outage details though, we could only see the details for one of the outages.  The box should show half details with the option to toggle to the next outage.



November 06


WME - Asset Search

  • The WME search only allowed searching by node name.


October 31


GIS Sync - fix latitude/longitude order

  • The constructor was being used incorrectly in a few places, where latitude/longitude were swapped.

October 30


WME - Default Line Reference

  • When drawing a line, the reference & phasing of the new line will default to the reference used by existing lines attached to the end node.


WME - New Line Length

  • When drawing lines, the length was always entered as 0 and the user had to open the line and hit Recalculate.  The line length now defaults to the value populated when the recalculate button is pressed.




October 21


WME - Map Loading Issue

  • Fixed: On the WME page, the map was not loading except only regions were visible.



October 10


GIS Sync - Generate secondary lines

  • We can now generate secondary lines automatically based on "service location" information from the customer.


Elbow/Switch issues

  • Fixed: Primary lines connected to the TX between two elbows are single phased, but these lines should be 3-phased.




October 05


Temperature Readings:

  • Fixed: The temp graph was showing the expected hourly readings, followed by an extra value 1min later that was much lower than the one that came on the hour.


October 02


Dashboard Transformer Load Count Not Excluding Transformers

  • Fixed: The dashboard transformer loading readings and the transformer list page had different number of transformers which was due to the dashboard tx list not considering excluded transformers.


September 30


Outage Restoration issue

  • Fixed: A success message was received after populating the restore time and pressing save, but it was not saving the restore time or restoring the outage.


Planned Outage - Area not recognized

  • Fixed: An error was received when trying to enter an outage that area must be selected.



September 25


Add Restore Step Error

  • Fixed: When adding a restore step to an outage we received an error (but it still added the restore step).


Meter Detail Page Issue

  • Fixed: There were some instances where the meter detail page failed to load due to null/empty account values.


Outage Impacted Meters

  • Fixed: Issue where meters impacted was showing zero on some screens and correct on others.


September 18


WME - Ability to Remove Layer

  • Added the ability to remove a layer. Shows the user a warning/confirmation message before allowing them to remove it.


September 16


Windows App - Outage History Bug

  • Fixed: While trying to edit one of the older outages, SMAP Window crashed.


September 11


WME - Editing References on Mobile

  • Editing references was not working on mobile, clicking the arrow to expand a menu, but double-clicking/long press on an item did not open the right-click menu we get from the desktop.


WME - Short Circuit Analysis Issue

  • Fixed: Short circuit analysis was not working in WME.


September 04


TX Load calculations delay

  • Fixed: Some systems had a delay on their TX load information.


August 29


POM - Active Outage Count

  • Fixed:  Active outages sidebar did not match what was shown on their public outage map.


August 28


Outage Message Filter Issue

  • Fixed: When filtered the Received column for outage messages (table when clicking on LG on dashboard), after entering in 'contains' value, an error occurred.



August 21


PowerShare - Adjustments to Forecasting

  • When we go back a year etc. we will go to the same day of week.


WME - Show Disconnected/Model Save

  • When showing disconnected manually, it will show ALL disconnected nodes, not just meters.
  • When saving the system model, it will only consider disconnected meters when warning the user about disconnected meters and closed loops.



WME - Switch Context Menu

  • Simplified the context menu for switch to have "Toggle Switch Status" so there's no sub menu.



August 19


GIS Sync - Inactive Meters

  • Fixed: A meter that was removed from the database but was still showing up after running a GIS sync.


August 15


WME - Switch Changes

  • Zoom level will be maintained when selecting an item through search, only Pan is changed to center the map on the selected item and it is selected/highlighted.


August 14


WME - Reorganize Toolbar

  • Moved Search drop down with the select buttons
  • Renamed "Analysis" tab to "Tracing"
  • Created a new tab named "Analysis", and a button where "Run Short Circuit" will be executed.


August 07


Web Model Editor - Beta

  1. Fixed: While trying to save a system model an error showed up 212 disconnected meter nodes but the disconnected nodes did not have meter elements, so they should not have shown up.
  2. Fixed: When double-clicked on the an item in the list, it would bring us to a blank spot on the map instead of centering on the node.
  3. Add Power Transformer
  • Power Transformer elements allow users to connect different primary voltage layers as Transmission Stations & Substations do in the field.


  1. A user will use the Select tool and CTRL to select 2 nodes on different primary voltage layers.
  2. The button then becomes active, allowing them to create a Power Transformer which will connect the 2 voltage layers.
  3. The user is then prompted to enter the details of the transformer at that location.
  4. The values used here are very similar to the References -> Transformer Properties.
  5. The user selects a Transformer Reference to use when adding a Power Transformer.





July 31


WME - Search Type

  • The WME search used to be 'Begins With' instead of 'Contains' which was making it very difficult to use.


Menu options hidden on mobile

  • When viewing SmartMAP on some mobile devices the bottom options on the menu were not accessible because they got cut off and there was no slider.


July 27


Outage Attachment - Drag & Drop

  • For outage attachment "Choose File" is now changed to "Choose/Drop File".


Outage Entry Boxes

  • Outage entry box is now expandable to add lengthy text.


Outage info - Safe measures

  • While adding information about a confirmed Outage if User tries to enter for “Estimated Restore Time” a previous date/hour than “Interruption Time”, an error message will pop up that the info is not compatible with “Interruption Time”
  • If User tries to enter for “Restore Time” a previous date/hour than “Interruption Time”, an error message shows that the info is not compatible with “Interruption Time”
  • If User tries to enter for “On-site Time” a previous date/hour than “Interruption Time”, error message is shown that the info is not compatible with “Interruption Time”
  • User can leave “On-site” date/hour blank, but in case User has entered “On-site" date/hour info then “Restore time” date/hour has to be later than “On-site" date/hour.


Remove Temperature Bubbles

  • The Temperature bubbles (tooltip) is removed when hovering the graphs as it was hard to select the actual data points that users needed the bubbles for.




July 15


TXs taking too long to load in SmartMAP maps

  • Fixed: The "view on map" option for was optimized for performance


July 03


Transformer Phase - incorrect

  • Fixed: The system model had the current phasing correct but was not updated in web model.


July 02


WME - Release 3 Cleanup/Fixes

  • When opening a model from server, it showed a loading status. At time it appeared to hang with nothing happening for up to 5 seconds.


June 26


WME - Right Click Context Menu For Switches

  • Added a context menu when right clicking a switch it will allow toggling the opened/closed status of the selected switch.


Outage Detection Error Logs

  • Fixed: We were getting errors while trying to clear items in Outage detection.


Customer Outage Download

  • Added OutageID to the Outages Impacted Customers page and a download option for the data.


Can't Cancel PSCs

  • Fixed: SmartMAP allows users to queue PSC's and there is an X button to cancel requests.  The X was not working.


Unexpected Server Response Error in Unassigned Outage Calls

  • Fixed: The Unassigned Outage Calls tab in the Meter section of SmartMap was displaying an "Unexpected Server Response error", and was not loading any data.


June 25


Kirkwood - Invalid Area

  • Fixed: Area=KW is gave an error while trying to save system model after updates.


June 20


WME - Search Type

  • The WME search was updated from 'Begins With' to 'Contains' which made search functionality easier.


June19


WME - Allow Navigation From Outage Map For Switches

  • Added a new button to the switch sidebar on the outage map
  • Clicking it will navigate to the Model Editor page and select/zoom to the switch.


WME - Voltage Layers

  • Layers Tab will display the models current voltage layers. We'll rename the current "Layers" tab to  "Visibility" or whatever else makes sense.


June 15


Restore Unassigned Outage Calls for Desktop App

  • Fixed: Unassigned Outage Calls was not loading in desktop app.


June 12


Public Outage Map

  • Improved functionality for improved performance


June 06


TX Page not loading

  • Fixed: The transformers page was not loading and showed an error.


June 04


GIS Sync - unapplied changes

  • Fixed: Changes that were already addressed in model were showing up again even though no new GIS data was uploaded.



May 25


Connexo V12 PSC

  • Fixed: Connexo V12 PSC did not work for meters where Meter Number != Meter Name.


May 22


WME - Allow Saving and Loading Models from the Server

  • Added the ability to save the progress of that model on the server.
  • Added a UI that allows a user to load a previously saved file from the server.

May 21


WME - Release 2 Cleanup

  • Fixed: Issue when selecting multiple items on the map with the box tool - if you select more than once the selection did not re-render.
  • Fixed disconnected lines table styling.

  • Reduced z-index of the legend.

  • Improved validation.

  • Base action creator has "Validate" that can be leveraged to return better messages when doing any action.

  • Undo was not showing after first edit, once another edit action was completed, undo would then show.

  • Starting session and navigating to edit crashed the page.

  • Rounded windows.

  • Disabled map rotation.



May 08


Inactive Meter Events

  • The dashboard tiles for last gasp messages, tilt/tamper, brown out, and hot socket events will all exclude meters that are currently inactive.


Unassigned Outage Calls

  • Date selector for unassigned outage calls did not control the call table, only the outages, it controls both now.


May 06


TX Load Export

  • An export option is now available to the SmartMAP & HealthMAP Transformers page to allow a user to select a date range and download all of the data.


May 03


Support for multiple AMI's

  • Added the ability to add multiple AMI connection references to support two AMI's for power status check and outage detection.


May 01


Voltage Under Threshold Alert

  • Fixed: Voltage under threshold expected a negative value but the form would not allow the user to enter one.



April 24


Web Model Editor - Release 1

  • WME is active for all customers and can be accessed through the menu on dashboard.




April 09


WME - Use User Name/Email For Currently Editing Users

  • Editing user shows the username/email like in the desktop app.




March 28


System Model Save Issues

  • Fixed: There were issues saving system models after making voltage updates.




March 21


Boundary meters

  • Fixed: Dashboard Boundary Meters were not updating.



March 18


Public Outage Map

  • Public outage map will center on user coordinates when viewing from Enerconnect




March 13


Switch Status Toggle Names

  • Switches correctly displayed status as Open/Closed, but when changing the status of a switch, it showed ON/OFF instead.  Changed the toggle names from ON/OFF to OPEN/Closed.


Restore Step - Device Search

  • Fixed: if we opened the TO device search looking for transformers, on the last page of available distribution transformers and we changed the search to switch, it showed no results unless we went back to the first page.



March 05


Missing Lines

  • Fixed: Few primary lines were missing from model import.


March 04


Missing TX Loading

  • TX loading data for some transformers.



February 29


Feeder Naming Issue

  • Fixed: Feeder naming was not working as expected.



February 23


GIS Sync - Import/Export Enhancements



February 21


Outage Management Improvements

  1. When performing a partial restoration of an outage by populating restore steps, it determines the number of meters restored & the outage is updated on the map & public outage map to reflect the partial restoration.
  2. Adding a restore step, it shows the number of devices downstream of the restored device and subtract them from the total number of devices downstream of the outage device when a specific device is restored.
  3. Updating the map: if there's no restore time, the full outage shows on the map. The outage on the map reflects restore steps that have partially restored an outage.
  4. Individual meters that have been restored will no longer be blinking.
  5. On the interrupting device - it shows how many meters were originally affected, as well as how many are still out.
  6. The number of affected customers is the current count - only customers that have not yet been restored.


February 14


Outage SMS Issue

  • Fixed: There was an issue with outage messages not going out.  The messages were delayed.


February 06


POM - Partially Restored Outage

  •  Partial outage restoration reflects partial outages by blinking only the meters which were remaining out on the map.  The same was not displayed on the public outage map.


February 03


User-created levels wouldn't work



February 01


Proposed Outages - Meter Blinking

  • Meters now blink on the map when part of a proposed outage.


Downstream Meters list duplicates

  • The duplicates appear to be related to expired meter-TX relationships which are being included.


OM Improvements - Restore Steps

  • When entering a restore step for an outage, the user can select a "From" device and a "To" device.


OM Improvements - Outage Details on Map

  • When one or more Restore Steps have been added to the Outage:

      -The number of customers affected display the current number of customers out, as well as have the original count displayed

      - Meters that are no longer out stop blinking on the map.


January 31


Line Feeder missing

  • Fixed: On validation, some lines which had the name in the system model, but the name did not show up on the web.


Load/Voltage Gauges

  • Fixed: The gauges stopped showing details.


GIS Sync - Missing Description

  • On Export from GIS Sync, Junction point Descriptions were not being included as the .DSX node description.


January 29


Model Locked Issue

  • Fixed: When publishing a model from the desktop app and the publish is finished the app would not unlock the model until the "Ok" button is clicked from the "Save complete."


January 25


Last Gasp Messages

  • Fixed: some Last Gasp Messages were not being processed.


January 24


Line Feeder missing

  • Fixed: There were some lines which had the name in the system model , but the name did not show up on the web model.


January 18


TX Loading - Meter Details

  • Fixed: When viewing TX Loading and clicking an interval to reveal the bar graph of the meters that make up the TX load, the meter details were not loading for all meters.


January 13


Planned Outage Viewing on Map

  • Fixed: To view a planned outage on the map which is entered ahead of time and not currently in progress, we received an error.


Planned Outage - Meter Halo Color

  • Fixed: Planned outages were supposed to show up as blue, but they were showing as Red.


Auto-Scrolling Inconsistencies

  • Fixed: A number of inconsistencies and unintended functionality regarding the automatic scrolling implemented in the SmartMap Application.


January 11


GIS Sync - Load Categories

  • Fixed: Load Categories were getting changed from "Year,Week" to ","  when we run GIS Sync and export a .DSX.


January 10


Outage Management - Attachments

  • In the desktop application there is the option to add attachments to outages, the option to attach/view was missing from the web though.


December 21

Downstream Meters List

  • Added the option to view a list of downstream meters when a user selects a device on the SmartMAP Web map.



Change and additions to be added to the sidebar. These can be designed similarly to the desktop app to start.

  1. Show individual electrical layers
  • We currently show lines by primary/secondary. Show the electrical layer associated (current web map does this)
  • Electrical layers can be found in the Dess model references - SystemModel.References.Values(SubType.Layer)
  • On Lines and the Layer Dess objects, IsMeterLayer/IsMeterLine is secondary lines, all else are primary

2. Add tabs to the bottom (or top) of the side bar

  • Layers.
  • References - expandable list of all reference types (Conductors, Transformers, etc.).
  • Selected - show all elements that are currently selected. Expandable, with type as parent.
  • Meter Check - allows selecting a meter from a table of meters and perform a status check.


December 21

Downstream Meters List

  • Added the option to view a list of downstream meters when a user selects a device on the SmartMAP Web map.



December 20

Power status Check

  • Fixed: Power status check returned empty error.



December 18

Set Feeder names

  • The Set Feeder Names tool is a automatic action now.

Fixed: Outage - Empty Impacted Meters List


December 15

TX search broken

  • Fixed:  When searched for any part of the name in the Transformers search it had no results.


December 13

Can't confirm outage

  • Fixed: The page just continuously tried to load when we press the CONFIRM button.

Model save error

  • Fixed:  This issue was discovered after a model was saved after a failed Load Flow resulted in bad numbers.

Desktop App - Outage Page

  • Fixed: The outage management tab to view historic outages did not show up but when it was changed from outage to non-outage, then went back and they showed up.

Password Reset Issue

  • After resetting password and setting new one, the submit button will not work.


December 08

Proposed-Outage Reasons

  • Fixed: When trying to load the Admin - Outage Reasons Page, an 'Unexpected Error Response' was received.


December 06

View outage details from map

  • An overview button was added to the outage details side tab when viewing an outage on the map. Clicking the button will navigate to the Outage Management page, and auto select the correct tab and entry for the selected outage.


Outage Management - Sync Phases and Impacted Meters

  • Fixed: When creating a new outage event or editing an existing outage there was no synchronization happening between the area of the form where the impacted phases are selected and which downstream devices are included in the impacted meters count on the same form.


December 02

Restore time won't populate

  • Fixed:  outage & restoration messages were available for the meters under Device Notifications, but users were not able to populate restore time with the populate button.


November 30

GIS Sync - Area

  • A null area should not be considered as a GIS Sync Update & If GIS.Area comes across with a value, then it will propose updating SmartMap.Area to the GIS.Area value.


November 27

Desktop Application

1.. Fixed: Some models were slow in the desktop applications.

2.. Added additional model validation for missing unique IDs where needed.

3. Bug fixed: The 'Connected Lines' portion of the box was getting a lot of extra white-space, making it the full size of some screens in some cases not allowing access to the buttons at the bottom.



November 24

Data by Timestamp report

  • Similar to the TX Peak Report, which provides a list of all transformers with their peak load for a specified date range, users can view all TX Loads for a specific timestamp (or meter load/voltage).  The data is downloadable so users can perform analysis based on that data, or view/compare with GIS.

 Help Icon/link for web

  • Help button added to top right corner. Clicking the button opens a new nab navigating to the correct support repository.

November 22

Fixed: Oracle connection timeouts

  • There were intermittent timeouts when trying to open an Oracle connection.


November 18th

  1. Duplicated Interrupting Device
    • Fixed:  it traced the device to identify the area, and it came up with both area's & duplicated the device when the feeder covered 2 areas

2. Update Vulnerable .NET Packages


November 15th

  • An error was reported while trying to load the proposed outage page and was fixed by populating the Area.

November 14th

GIS Sync

  • Fixed: Duplicating meters issue.


November 13th

GIS Sync - Deleted Description Field

  •  Fixed: The description field was empty in SmartMAP and GIS when dsx file was imported into SMAP even though it was populated.


November 9th

Device Notifications Columns

  • Added Meter Name column that the voltage tables have, and the lookup for Customers & Address.


November 8th

Outage Issues

  • Fixed: unable to edit the outages.


November 6th

Fixed: Geotab - Vehicles not working

  • Vehicles were not updating on the map and last updated locations pointed where the device settings was reconfigured.


November 1st

Fixed: GeoTab - Long Vehicle Name

  • This error started happening a lot in the logs - and appeared to be due to a vehicle name that was longer than we could store.



October 25th

Upgrade Web components


Fixed: Adding Outage Device

  • When adding an interrupting device to an outage error popped up.
Outage - impacted phases
  • Users will be able to view affected phase(s) as well as define them when selecting an interrupting device. When outage detection runs, it is able to propose an outage at a single phase of a 3ph device.

DSO - Import Predispatch Shadow Prices

  • The DSO project will use data from the IESO Predispatch Shadow Prices Report to determine if additional power should be purchased from market participants.


October 21st

Outage Summary Emails

  • Added timestamp to first "last gasp" messages showing the exact time of outage.



October 14th

    Map Refresh Indicator Part 2

Added event to web service: when a new system model version is created.

Created 'UseNewTransformerMapper' Setting in GIS Sync Customer Settings

  • Created a setting to enable/disable the new transformer-meter mapper for a specific customer.


September 30th

Nodes Meter Task

  • Updated Nodes Metering task in SMAP Task Scheduler application: if there are no assets found in Nodes, stop execution of task.


September 21st

  1. Created scheduled task that publishes interval readings to Nodes.
  2. Included interval readings for meters identified as market participants.
  3. Provided 'net' readings (e.g. aggregate of load and generation).
  4. Included as many intervals as possible
  5. Scheduled to send readings daily.


September 18th

Fixed: Dashboard Hi/Low Voltage Problems count & Table count don't match.



September 7th

Bug Fixed: Error when unselecting row on Outage tables.


August 30th, 2023

    Users without “Add/Edit Outage” will no longer be able to view the outage menu and add/edit outages.



August 23rd, 2023


    Create new system model version when system model is updated from web app – internal & external



August 16th, 2023



    Added Samsara AVL integration to SmartMap.




August 2nd, 2023

  1. Added a check on setting filed status for outages - ensures that there are restore orders set for the outage first
  2. fixed bug with the legends in the filters not showing up
  3. Allow users to view meters that are no longer active



July 29th, 2023


Added txtemprating setting to SmartMap. Transformer load % and readings should now take into consideration when this setting is set in SmartMap admin.



July 26th, 2023

Added Power Transformers to the Web Map
  1. Power Transformers will now be saved to the database on publishing a model
  2. Power Transformers will be visible on the web map along with details in the side bar on click


Enable Outage Markers In Both Real-Time and Historical Views


July 5th, 2023

1. Web map maximum zoom level will now go beyond what the default tiles allow, changing to a blank background/canvas to do so



June 17th, 2023

1. Updated map side bars with new styling, labels and icons


May 31st , 2023

1. Add Ability to edit non Outage and major event flags in Outage Management


2. Changed to a new Icon Set for the navigation and Header bar





May 27th, 2023

1. Dashboard Data based on Time range (Default of 24 hours)


April 29th, 2023

1. Ported a Number of Pages to Kendo React (Including the switch detail page, outage report pages, and the login page.)

2. Added Per-Phase Nominal Meter Voltage Ranges to the Meter Loading Chart
3. Last Gasp Query Optimization Changed

April 12, 2023

1. The dashboard has been rewritten with a similar, more modern interface. Problematic tiles will now have a flashing icon

March 30th, 2023
  1. Excluded meters will now be shown on the map and searchable.
  2. The meter name will be shown as the search result label when searching for meters instead of the meter number.

March 22nd, 2023

  1. Improved Dashboard Loading Performance  - Data on the dashboard should load faster now.
  2. Fixed a bug that caused transformers to disappear when you enabled Real-Time mode on the map.
  3. Fixed issues with datasets not invalidating when toggling Real-Time mode on the map.
  4. Increased System Model Save Timeout System model uploads were exceeding the timeout limit.  This timeout limit has now been increased, and will be applied in the next Desktop App release.
  5. Improved System Model Upload Performance, large system models will now upload much faster.
  6. Fixed a bug where invalid values were being rendered on detail section of the map when a power line was selected in non Real-Time mode.
  7. Enabled Response Compression, Dashboard, and some Map endpoints will now transfer less data, resulting in a faster load time.
  8. Adjustments to planned/unplanned/historic outage table columns to make them more consistent.

March 8th, 2023
  1. Added an indicator to the SmartMap web app which shows if the system model is currently locked for editing by another user in the same organization.
  2. Added functionality to the new api which allows editing meter properties. Also added a form to the meter detail page to interact with this backend functionality.
  3. Fixed a data display issue which made the relationship between a meter’s phasing and nominal voltage values unclear.
  4. Added new symbols for Overhead VS Underground assetsImage


March 1st, 2023
1. Added the Ability To Modify Non-Outage Reasons
On the Admin page if you navigate to the "Outage Reasons" tab, you can now modify non-outage reasons.


2. GIS Sync Table Improvement
When viewing models on the GIS Sync page, you can now adjust the column widths.

3. User Level Access Bug Fix
Changes to User Level Access permissions will now take effect immediately.


February 22nd, 2023
1. Performance Improvement
 Improved simultaneous request handling - page loading should be a lot faster now.


February 15th, 2023
1. Meter Voltage Edits From the SmartMap Front End
Previously it was only possible to edit nominal voltage values for meters in the SmartMap desktop app

2. Switching Management Enabled
This update allows users to open/close switches from the web app

3. Added Date Picker Support For Data Table Links
When clicking on links embedded inside of data tables (for example a link to navigate to view an entity on the map) the date previously selected with the date picker will now persist across pages if applicable.

4. Improved Outage Management Data Tables
The look of all data tables in the outage management section have been updated. The data being displayed is still the same, the main difference is the way you interact with the tables (for example filtering).

5. Pie Chart Outage Rework
Previously there was only one layer of pie chart nesting (when you click on slices to view sub-charts). With the new rewrite, the is no limit. Another benefit is faster initial load time.

6. Device Notification Bug Fix
A minor bug has been fixed with the device notifications table. There was an issue with the data appearing in the wrong column if the meter that sent a notification did not have a transformer. This has been fixed, and it will simply render an empty column.

7. Consistency Update
The layout for the following pages has been made more consistent:
  • Transformers
  • Meters
  • Line Monitors
  • Boundary Meters
  • Reclosers
  • Faults
  • Device Notifications

Was this article helpful?

That’s Great!

Thank you for your feedback

Sorry! We couldn't be helpful

Thank you for your feedback

Let us know how can we improve this article!

Select at least one of the reasons
CAPTCHA verification is required.

Feedback sent

We appreciate your effort and will try to fix the article
