Import SCADA Data

There are 3 options for importing SCADA data:

1. MultiSpeak

SCADA systems are able to publish updates to Utilismart via two MultiSpeak v4.1.6 methods:

1. SCADAAnalogChangedNotification
2. SCADAStatusChangedNotification

In order to publish this information to Utilismart, customers will need two things:

1. MultiSpeak credentials. The Eleven Winds dev team can get these for you.
2. Our SCADA MultiSpeak url: https://multispeak.utilismartcorp.com:3047/MultispeakService/SCADA_Server_v416.asmx

Once the data is being sent, Utilismart operations team will complete the model configuration.

With SCADA imports configured in this way, the data can be viewed in SmartMAP Web & Desktop app, it is used in the calculation of Real Time loading and any time SCADA load flow is run, you can choose to use SCADA data from the server.

2. Flat Files

Survalent has a specific flat file format that it can use to publish SCADA readings on a 5 minute interval and the files are saved to your Utilismart SFTP SCADA folder for auto-processing by SmartMAP.

The attached SCADAsample.csv file is an example of the file structure.

Once the data is being sent, Utilismart operations team will complete the model configuration.

With SCADA imports configured in this way, the data can be viewed in SmartMAP Web & Desktop app, it is used in the calculation of Real Time loading and any time SCADA load flow is run, you can choose to use SCADA data from the server.

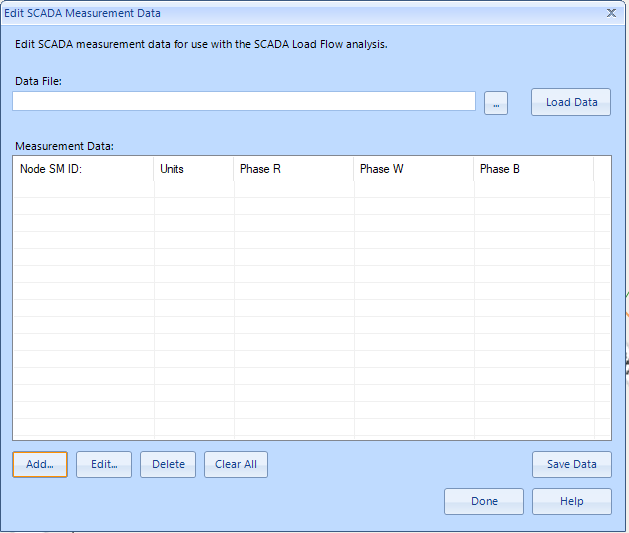

3. Manual Import - By going to Analysis --> Loads --> SCADA Measurement Data, you can use the Add button to select SCADA points in the system and specify the loading at those points which you want used for your SCADA Scaled Load Flow Analysis.

After adding all of the datapoints, use Save Data, then when running Analysis -->More--> SCADA Load Flow, you can select that loading file.
